Generate C Struct

The Generate C Struct option allows you to generate C structure when a new View is created or an existing View is modified. To generate a C structure for a View, select Option 8C – GENERATE C STRUCT from the Define Table menu to display the Generate C Struct screen (see Figure 146), and complete the fields described in Table 164.

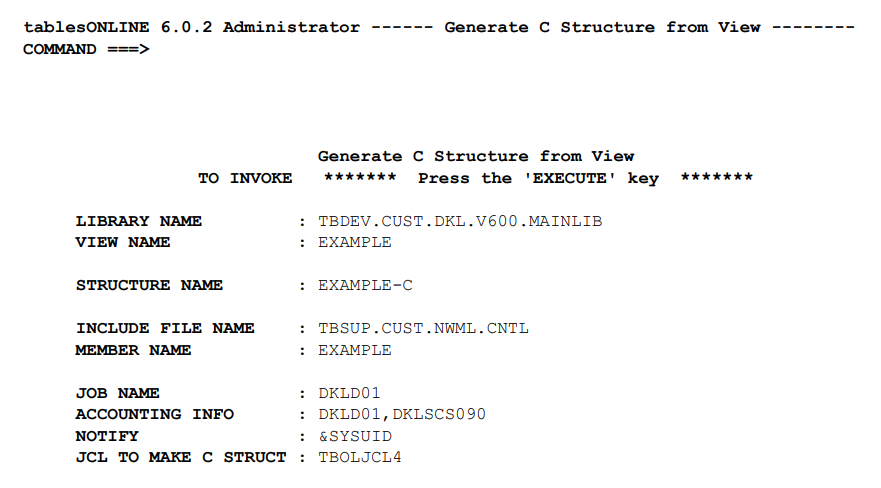

Figure 146. Generate C Struct Screen
Generate C Struct Screen

Table 164. Generate C Struct field Description

Field Name

Description

Library Name

Insert the name of the library where the View is kept. You may also enter a number from 1 to 7 to select a relative library number, a DDNAME or a full dataset name. Pressing <PF1> for help in this field will display a list of all authorized libraries.

View Name

Insert the name of the View for which you wish to create a C structure. Pressing <PF1> for help in this field displays a list of all authorized Views.

Structure Name

This field contains a prefix that will be placed in the C structure.

Include File Name

This field contains the Include File dataset name that contains the C structures available to application developers for the compilation of application programs. This is where the C structure will be placed.

Member Name

This field contains the name of the member in the Include File that will contain the created C structure.

Job Name

This field contains the job name that will appear on the job statement of the batch job that creates the C structure.

Accounting Info

This field contains the accounting information that will appear on the job statement of the batch job that creates the C structure.

Notify

This field contains the notify (User-ID) that will appear on the job statement of the batch job that creates the C structure.

JCL To Make C structure

This is the name of the table that contains the skeleton JCL to be submitted to the internal reader when a C structure is created. The table that is delivered for this purpose is TBOLJCL4. It can be modified for your own installation.
