Define a Table

To define general characteristics of the Data Table, choose Option 3 – EDIT TABLE DEFINITION on the tablesONLINE DEFINE TABLE screen (see Figure 188). The tablesONLINE EDIT TABLE DEFINITION screen appears, as illustrated in Figure 193. The fields are initialized to default values if defining a new table. Press <Enter> to process input. If <PF3> is pressed to exit the screen and <Enter> is not pressed, the table definition is not processed.

tablesONLINE EDIT TABLE DEFINITION Screen

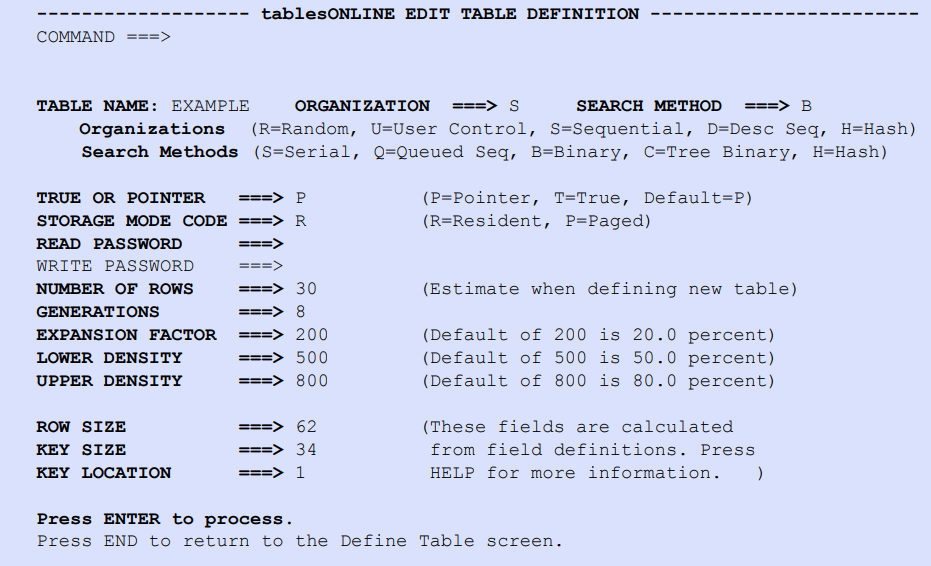

Figure 193. tablesONLINE EDIT TABLE DEFINITION Screen

The following descriptions provide an overview of the fields on the tablesONLINE Edit Table Definition screen (see Figure 193). For more information, see the tableBASE Programming Guide.
